Decompactor for maize, cereal, sunflower, etc
Curved tine subsoiler for turning the soil, leaving the vegetation cover practically intact. This 800 mm length model is designed for deep subsoiling. The recommended power for 30 cm depth is between 35-35 HP and up to 55-65 HP for 70 cm depth. The tine guard can be short (model A) or long (model B).
Main product specifications

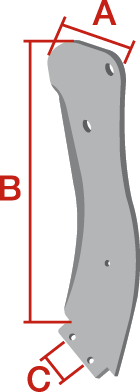

| Ref. | C | Grs. | B | D | Original Ref. | A | B | C | A | E | M | Tine |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15010-A D CA | 15 | 23200 | 40 | 300 | 820 | 80 | 15015T | |||||
| 15010-A I CA | 15 | 23200 | 40 | 300 | 820 | 80 | 15015T | |||||
| 15010-B D CA | 15 | 23200 | 40 | 300 | 820 | 80 | 15015T | |||||
| 15010-B I CA | 15 | 23200 | 40 | 300 | 820 | 80 | 15015T | |||||
| 15008-A D CA | 8 | 5050 | 200 | 295 | 295 | 80 | 15015T | |||||
| 15008-A I CA | 8 | 5050 | 200 | 295 | 295 | 80 | 15015T | |||||
| 15008-B D CA | 8 | 7830 | 130 | 295 | 465 | 80 | 15015T | |||||
| 15008-B I CA | 8 | 7830 | 130 | 295 | 465 | 80 | 15015T | |||||
| 15009 | 40x60 | 7200 | 135 | 40 | 580 | 80 | 15015-T | |||||

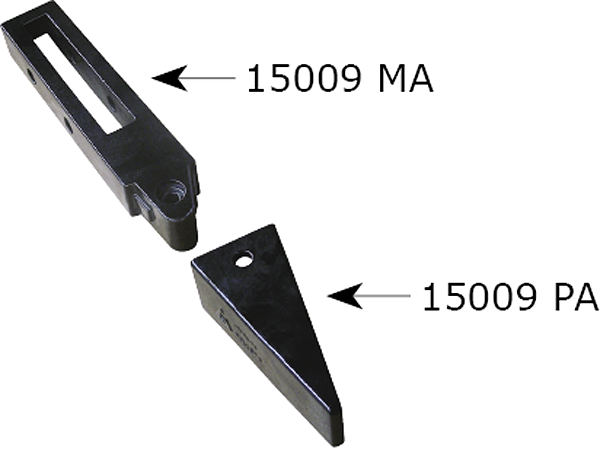

| 15009-MA | 40x50 | 3800 | 250 | 60 | 314 | 80 | 15009-KIT | |||||
| 15009-PA | 1850 | 575 | 67 | 147 | 58 | 15009-KIT | ||||||
| 15009-PC | 1850 | 500 | 67 | 147 | 58 | 15009-KIT | ||||||
| 15009-KIT | 65 | 5000 | ||||||||||
| 15015-T | 300 | 2000 |
D Made-to-order products.
D D = Right (Ref)
I I = Left (Ref)
15009: Ambidextrous
PC: Case hardened interchangeable point (62HRc)
15015-T consists of: 2 bolts 1199B1440AESP, 2 grooved pins 16x60 mm, 2 grooved pin 10x60 mm and a 30 mm washer.
