Vineyard subsoiler
Curved tine subsoiler for turning the soil, leaving the plant cover practically intact. This 600 mm length model is designed for medium-depth subsoiling, especially for crops such as vineyards. To assemble all the parts, use the bolt kit 15009-600-KIT.
Main product specifications
| Ref. | C | Grs. | B | D | Original Ref. | A | B | C | A | E | M | Tine |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

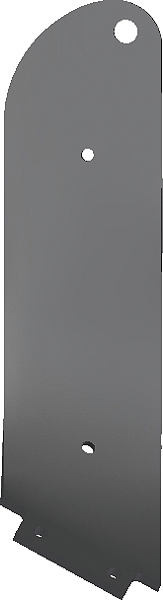

| 15010-600 A D CA | 12 | 8630 | 100 | 160 | 600 | 85 | 15009-600-KIT | |||||
| 15010-600 A I CA | 12 | 8630 | 100 | 160 | 600 | 85 | 15009-600-KIT | |||||

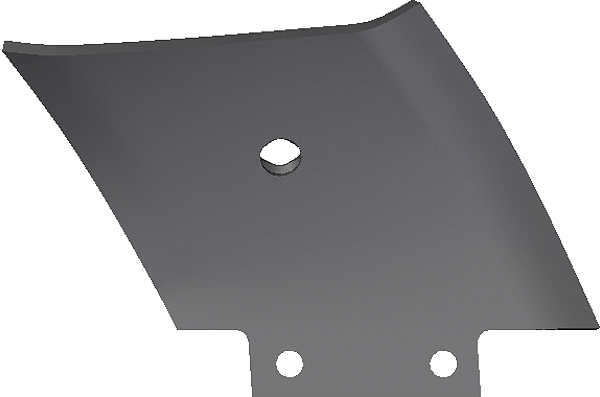

| 15008-600 A D CA | 8 | 2900 | 300 | 230 | 200 | 85 | 15009-600-KIT | |||||
| 15008-600 A I CA | 8 | 2900 | 300 | 230 | 200 | 85 | 15009-600-KIT | |||||
| 15009-600-KIT | 250 | 2000 | ||||||||||

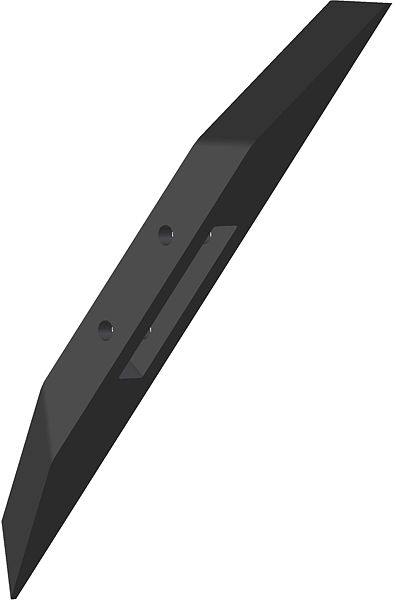

| 15009-600 A | 40x50 | 5000 | 170 | 40 | 532 | 85 | 15009-600-KIT |
D Made-to-order products.
D D = Right (Ref)
I I = Left (Ref)
15009: Ambidextrous

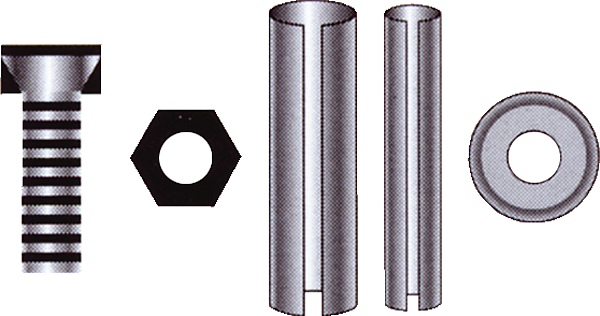

15009-600 KIT consists of: 1 x 1199B1440 bolt, 2 x 14x50mm grooved pins, 2 x 5x50mm grooved pins and a 30mm washer.
