Concave universal discs

Bellota offers a wide range of concave discs that fit all types of machines. The discs are manufactured to measure according to the desired concavity, thickness, centre hole or satellite, edge and notch type. Made from BORODUR boron steel exclusive to Bellota and also available in inPHInium steel. From 10" to 36" diameter and from 2.5 to 12 mm thickness.

Main product specifications

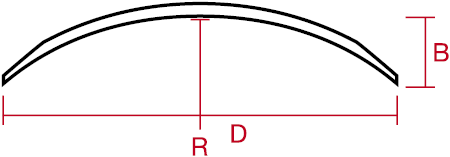

Ref.	R mm	Part number	Ø 10	Ø 11	Ø 12	Ø 13	Ø 14	Ø 15	Ø 16	Ø 18	Ø 20	Ø 22	Ø 24	Ø 26	Ø 28	Ø 30	Ø 32	Ø 34	Ø 36
1942/1932	498	B mm							43	54	67	84	100	120	141
1942/1932		D mm							410	456	506	556	605	635	695
1903/1913	545	B mm					29		39	49	61	76	90	110	127
1903/1913		D mm					353		413	457	508	560	607	656	704
1904/1914	595	B mm	15				26		36	45	58	70	83	100	117	133
1904/1914		D mm	254				355		415	460	511	562	609	661	708	754
1905/1915	620	B mm					26		34	43	53	67	80	96	112	128
1905/1915		D mm					356		416	460	512	565	612	664	711	752
1906/1916	680	B mm	11	14	15	20	23	26	32	40	50	61	73	87	102	114	132		174
1906/1916		D mm	254	281	303	331	357	377	419	463	515	567	616	670	722	762	814		915
1907/1917	722	B mm							30	37	46	57	67	81	94
1907/1917		D mm							417	462	512	567	614	668	718
1948/1938	797	B mm							27	34	43	52	62	73	85	97	101,5	128	146
1948/1938		D mm							418	464	516	570	619	676	726	770	816	865	922
1910/1920	983	B mm							22	28	35	43	50	60	70
1910/1920		D mm							420	465	519	574	624	680	733

The first code has an outside bevel and the second code has an inside bevel.

Consult the different concavities of the range of discs smaller than 16".
